Hungry Cat Picross solver

This program is an attempt to automatically solve a Hungry Cat Picross grid with a simple algorithm.

The principle of the game is simple, yet complex to solve: each pixel has different possible values. It is not possible to test all combinations, so we have to be smarter.

Imports

import os
import math
import re
import numpy as np
import matplotlib.colors
import PIL
import copy
from PIL import Image, ImageDraw, ImageFont

Utility functions

arraytopix allows to transform easily a numpy array to a PIL image

colorto2rgb transforms a color name to a RGB value

def arraytopix(array, palette, pixsize=1):
    npi = np.zeros((array.shape[1], array.shape[0], 3), dtype="uint8")
    for i in range(npi.shape[0]):
        for j in range(npi.shape[1]):
            npi[i,j] = palette[array[j,i]]
    pal = Image.fromarray(npi).resize((array.shape[0]*pixsize, array.shape[1]*pixsize), PIL.Image.NEAREST)
    return pal
def colortorgb(color):
    return tuple(int(x*255) for x in matplotlib.colors.to_rgb(color))
c2rgb=colortorgb
def gethue(x):
    return matplotlib.colors.rgb_to_hsv(matplotlib.colors.to_rgb(x))[0]
def getsat(x):
    return matplotlib.colors.rgb_to_hsv(matplotlib.colors.to_rgb(x))[1]
def getbri(x):
    return matplotlib.colors.rgb_to_hsv(matplotlib.colors.to_rgb(x))[2]

Color names

As we may want to type ourselves the problems in a first step, let’s define some color names (from matplotlib colors)

cw, ch = 900, 680
bw, bh = 30, 25
sx, sy = 157, 27
colorpic = Image.new('RGB', (cw,ch), (255,255,255))
fnt = ImageFont.truetype('arial.ttf', 13)
draw = ImageDraw.Draw(colorpic)

colors = [x for x in matplotlib.colors.get_named_colors_mapping().keys() if ":" not in x and len(x) > 1]
satura = [x for x in colors if getsat(x) > 0.05]
grays  = [x for x in colors if getsat(x) <= 0.05]
colors = sorted(grays, key=getbri) + sorted(satura, key=gethue)
x = 0
y = 0
for color in colors:
    draw.rectangle([x,y,x+bw,y+bh], fill=c2rgb(color), outline=(0,0,0))
    draw.text((x+bw+5,y+4), color, font=fnt, fill=(10,10,10))
    y+=sy
    if y > ch - bh:
        y = 0
        x += sx
colorpic

png

Testing the utility function to generate an empty grid (starting point)

a=np.fromfunction(lambda i,j: (i+j)%2, (10,15), dtype="uint8")
pal=[c2rgb("lightgray"),c2rgb("darkgray")]

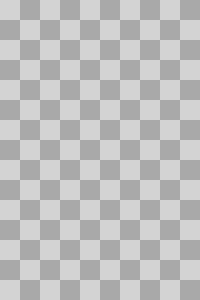

arraytopix(a,pal,20)

png

General Algorithm

Let’s get to the meat of the algorithm!

Definitions

We will naturally name the different structures of the problem. * Columns, rows: corresponds to the columns and rows definitions of the problem. We do not name the actual columns and rows of the picture unless we are working with the pixel for image-related functions. * Lines: Either a column or a row. A line is what allows us to make decisions. We never make decisions with using more than one line at a time. * Matrix: The matrix of all possibilities of colors. This matrix can be stored flat or as an actual matrix. * Colors: Available colors. Usually there are less than 4 colors.

Algorithm

First, we have to realize that columns and rows are completely identical and independant. The only way information “propagates” is from the matrix of pixel itself. We do not touch at all the numbers of “non runs pixels” and “runs pixels”. “Runs” pixel are a contiguous group of cells/pixels without holes in them. “Non runs” pixels are non contiguous group with hole with them, or are a group pixel of 1 (this is not distinguished within the game).

Thus, what we do for each column is also done for each row.

  1. For each list, we count the number of remaining color for each color. A color is set if it’s the only choice for a pixel. If numcolors - numfixedcolors == 0, then no other pixels can be this color. We do a pass where we remove all the colors from the other pixels. We also count the number of possible location for each color. If numcolors == numlocations, then all those locations are this color. We mark those.
  2. For each location, if the pixel would create a run at that location, then we mark this location as impossible for this color. Non runs means that there is at least one hole.
  3. For each run, we try all possible position. A position is possible if and only if all its cell still have the color as possible, and no other cell has the color as fixed. If for all run a cell is valid, then it’s marked as the color. If for all run a cell is invalid, then it’s marked as not this color.

Repeat until there are only fixed cells.

Caveats

This algorithm does not follow the games where you have to “guess” or “try” first. Take the following example (?? means unconstrained):

/ ?? ?? ?? ?? ?? ??
④R 2B RB RB R_ R_ RB RB

For each undecided cell (RB), both a run of R is possible. However, if we “try” to put the run on the left or right (not center), then the blues are creating a run. But it cannot be proven in advance.

For this problem, we solve with the following approach: On a general sense, the grid has “noise” or a certain amount of information. With time, this amount should only increase (we have more and more info). We can see that actually, one value is always decreasing: the sum of the number of possible color for each pixel. If that value doesn’t decrease anymore, then we have to make a guess.

Guess

We take all the possible pixels and guess at random (starting with first pixel). We then fix that pixel and try to resolve. Please note that introducing “guesses” forces also the code to be able to validate the matrix: after all, a guess could be wrong (whereas in the previous steps we can only make valid moves, hence never invalidating the grid).

We are trying all the “non fixed” pixels, in order, starting with first color. While it works in practice, it would be much better to select first:

  • Cells with only two choices;
  • Cells where the fixing immediately introduces chain reaction (i.e., not a “useless” guess). However, since after the first steps the matrix is already quite constrained, in practice in the few first pixels this chain reaction occurs and the move is either valid or invalid. We simulate a human by not looking at more than 3 steps ahead. If we can’t deduce anything, then it’s probably not the good pixel to begin with.

If a guess is invalid, we have to roll back to previous state. We do this by using a “deepcopy” mechanism that clones ourselves before starting a recursion. It is heavy handed, as actually we would only need to duplicate the inner matrix. If we were solving very large puzzles, we could even not duplicate ourselves, and instead “undo” each step of the recursion if the solving fails.

If a guess is valid, then the solution of that half-filled grid is the end of our current solution. We combine them and return the solution. This approach works well and even allows for the recording of the solution.

Animation

Since we can record each step of constraining, we can record an “animation” of the solution. Right now, we record each time the information value increases (the noise value decreases). We could have a (maybe ?) nicer rendering by recording each pixel as it becomes fixed. This is left as a exercise for the reader.

Bonus

The algorithm is also slow. We can speed it up by “freezing” columns or rows (i.e., lines) which have all their color found.

""" This is the main holder of constraint.
A line is a group of non runs, runs (mutually exclusive for each color) and cells.
A line by itself can check constraints, however we do it in the main class for convinience.
"""
class picxline():

    def __init__(self, size, name=""):
        self.size  = size
        self.name  = name
        self.nruns = [ 0 ] * size
        self.runs  = [ 0 ] * size
        self.mixed = [ 0 ] * size
        self.frozen = False

    def parse(self, colors, colordict):
        while colors:
            m = re.match("([A-Z])+([0-9]+)", colors)
            if m:
                index = colordict[m.group(1)]
                number = m.group(2)
                self.nruns[index] = int(number)
            m = re.match("([a-z])+([0-9]+)", colors)
            if m:
                index = colordict[m.group(1).upper()]
                number = m.group(2)
                self.runs[index] = int(number)
            colors=colors[1+len(number):]
        self.compute_mixed()

    def parsexml(self, colors):
        data = [int(x) for x in colors.text.split(",")[:-1]] #removes the last empty cell
        assert len(data) == self.size, "Not the good amount of colors"
        for i, c in enumerate(data):
            if c > 100:
                self.runs[i] = c-100
            else:
                self.nruns[i] = c
        self.compute_mixed()

    def compute_mixed(self):
        for i in range(self.size):
            assert (self.nruns[i] == 0) or (self.runs[i] == 0), "There are two pixels at the same place {} - {}".format(self.nruns, self.runs)
            self.mixed[i] = self.nruns[i] + self.runs[i]

    def set_line_data(self, data):
        self.data = data

    def freeze(self):
        self.frozen = True

    def is_frozen(self):
        return self.frozen

    def __repr__(self):
        return "{} - nruns: {}, runs:{}, mixed:{}, data:{}".format(self.name, self.nruns, self.runs, self.mixed, self.data)
